FOR SHORT FIBER (SPUN YARN)

images

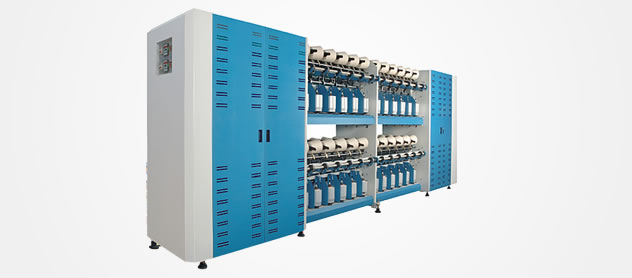

TFO Spun Yarn : Salient features

  • Double layer (deck) offers more production in less space
  • Machine construction offers long lasting maintenance free performance.
  • Operating panel with motor protecting devices & smooth start.
  • Rational design of the gearbox permits ideal take-up. The driving parts ate automatically Lubricated by the oil pump for optimum performance.
  • Low power consumption.
  • Winding completed or yarn broken, auto lifter support lift automatic to avoid yarn grind.
  • Cradle pressure mechanism for uniform density.
  • The range of movement of guide roller is very wide. This additional range allows customers to set winding tensions over a wide range, to suit diverse requirements.

OVERFEED ROLLER

images

The roller helps to adjust take-up tension at ease.
It is also used for soft package for dyeing.

AUTOMATIC UPLIFT MECHANISM

images

Winding completed or yarn broken, Auto Lifter Support lift automatic to avoid yarn grind, and also makes easy for operation.

Optional

  • Tailing Device
  • Oiling Device
  • Control ring
  • Waxing device
  • Gearless inverter driving system
  • Air threading for single Layer (deck)

All models also available in single layer (deck)

Technical Specification

Technical Data Model No. SP110 Model No. SP120 Model No. SP140
Spindle Diameter 110mm 120mm 140mm
Spindle Gauge 225mm 225mm 240mm
No. of Spindles 240 264 312 360 408 120 132 144
No. of Section 10 11 13 14 17 10 11 12
Connected Power in H.P. 10x2 12.5X2 12.5X2 12.5X2 15X2 20X1 20x1 25x1
Count Range 2/30s to 2/80s 2/30s to 2/80s
Spindles/Section 24 Nos. 24 Nos. 12 Nos.
Form of Operation Double Sides, Double Layer Double Sides, Single Layer
Spindle Speed 4.000 to 12.000 RPM
Twist Range 6 to 75 Tpl / 250 to 3000 TPM
Start Mode Star Delta Slow Start
Tensioner Capsule
Spindle Drive Tangential Belt Drive
Spindle Brake Individual Brake
Take Up System Cradle With Auto Lifting System

Specification of Supplied Packages

SP110

images

SP120

images

SP140

images

Maximum Take-up Capacity

Shape of the take up package Maximum take-up capacity (Appr.)

imagesCylinder

imagesCone Package

SP110 SP120 SP140
Approx.
2kg
Approx.
2kg
Approx.
2kg

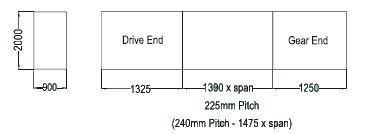

Machine Dimension in mm.

images
