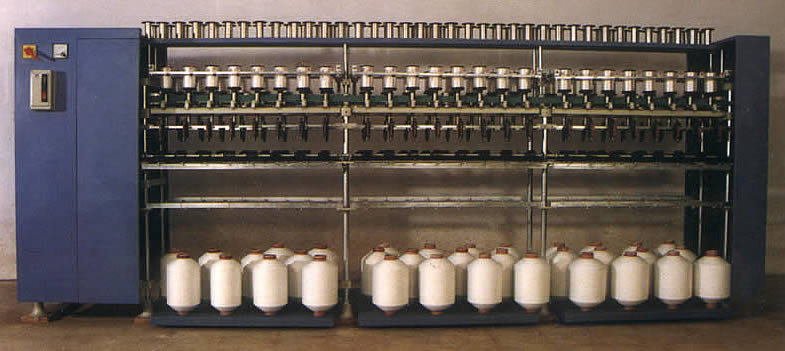

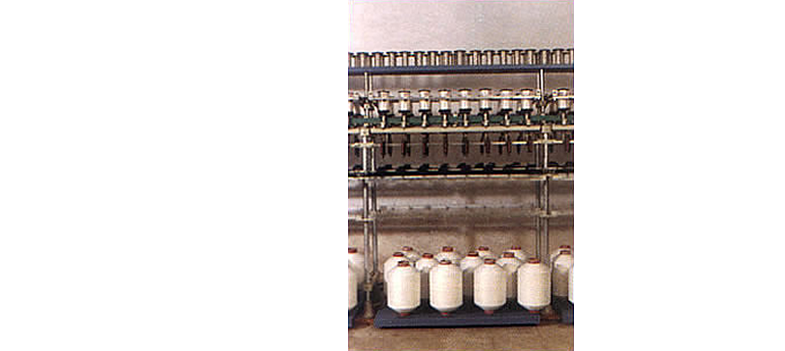

Vertical Winding Machine

Technical Specification

No. of Spindle 32 48 64 80 96
Length of Machine 9' 12' 15' 18' 21'
Width of Machine 24"
Height of Machine 56"
Spindle R.P.M. 2000 to 4500
Starter D.O.L. Starter
Driving Belt Nylon Sandwich
Traverse Length 75 mm to 125 mm Adjustable Vertical
Traverse Speed 1.5 to 3.5 Meters/Min Adjustable
Feed Package Up to 200 mm dia and 450 mm Length
Take-up Package Ranging from 75 to 125 mm Length and up to 85 mm Flange Dia
Traverse Systems Drum cam Operated vibration free Traverse Systems
  • Individual Ceramic tube Tensioner for each Spindle
  • Suitable for all type of synthetics filament yarn

Production Capacity in k.g. per 24 hours

No. of Spindle 32 48 64 80 96
Denier 85 160 240 320 400 480
  50 94 141 188 235 282
  40 75 112 150 188 224
  30 75 112 150 188 224
  30 56 84 112 141 168
  20 37 56 75 94 112

Space & Power Requirement

No. of Spindle 32 48 64 80 96
Length of Machine Feet 9 12 15 18 21
Electic Motoe H.P. 5 175 1 1.5 H.P 1.5 H.P
