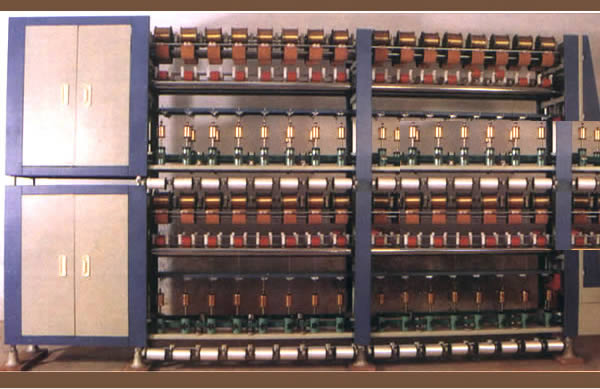

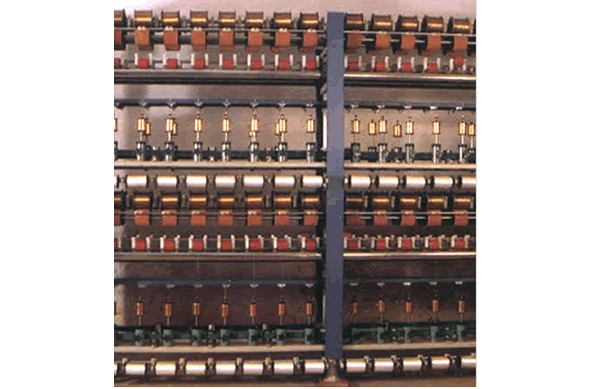

Hollow Twister Yarn Covering
Machine
Hollow Twister (Covering Machine)
Yarn Covering Machine : Salient features
- Power Saver & Totally Maintenance free.
- Dust Proof Self Lubrication Transmission.
- Variable Speed Self Lubricated Semi Automatic Traverse & Traverse Setting. (with oil bath)
- Saving of Electric Bill up to 20%.Zero defect yarn with uniform twist, unbroken filaments and without unwinding problem.
- Efficient Lubrication System.
- Designed for the best "ENERGY CONSERVATION.
- Both decks can independently work either in 'S' or `Z' direction.
- Highest TWIST ACCURACY within + 2%
- High operating efficiency, minimum maintenance, low energy, less labour and space requirements, results in substantially low operational costs.
- Prompt service after sales
Technical Specification
| Type of Spindle | Hollow |
|---|---|
| No of Spindle | 80 to 320 For Flange Bobbin (Metallic Yarn Covering) |
| 84 to 200 For Paper Tube (Fancy Yarn A.R.N.) | |
| Length of Machine | 11' to 49' |
| Height of Machine | 65 " |
| Width of Machine | 15" or 18" or 22"/td> |
| Spindle Speed | 6000 R.P.M. to 9000 R.P.M. |
| Take Up Package System | Flange Bobbin / Paper Tube |
| Take Up Package | On Mandril |
| Take Up Drive Drum /td> | Corksheet Coated Drum. / Backelite |
| Take Up Content | 250 Gms on Flange Bobbin / 1000 to 1500 Gms on Paper Tube |
| Twist Direction | S & Z Changeable |
| Twist Range | 80 to 3800 T.P.M. |
- Individual Ceramic tube Tensioner for each Spindle
- Suitable for all type of synthetics filament yarn
