FOR INDUSTRIAL THREAD (Embroidery Yarn)
Salient features
- For all kind of S & Z Twist.
- Machine construction offers long lasting maintenance free performance.
- Operating panel with motor protecting devices & smooth start.
- Rational design of the gearbox permits ideal take-up. The driving parts are automatically lubricated by the oil pump for optimum performance.
- Low power consumption.
- Yarn Sensors avoids single ply with the help of cutter.

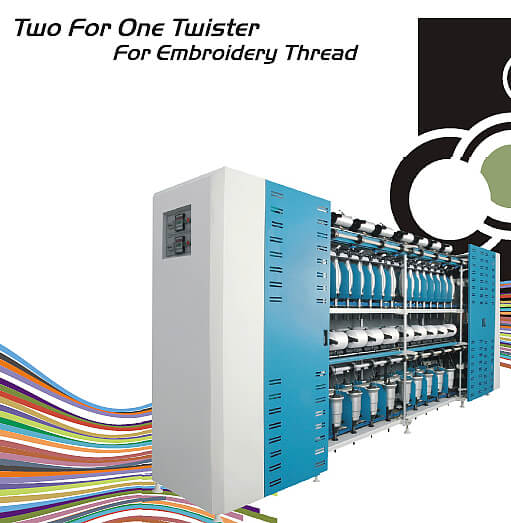

Technical Specification: Two for One Twister ( Embroidery Thread )
| Machine Type |
Double Sides Double Layer |
| Spindle RPM |
4000-12000 |
| Spindle Drive System |
Tangential Belt |
| Twist Range |
150-1200 |
| Machine Width |
800mm |
| Machine Height |
2000mm |
| Start Mode |
Slow Start Star-Delta |
Primary Stage
| Model No. |
EM1-90 |
EM2-90 |
EM3-110 |
| No Of Spindles |
208/224/240 |
| Spindle Gauge in mm. |
160 |
| Pot Dia in mm. |
70 |
| Denier Range |
50-150 |
| Installed Power in H.P. |
5HP |
| Supply Package in mm |
Take-up Package in mm |
| EM1-90 |
EM2-90 |
EM3-110 |
EM1-90 |
EM2-90 |
EM3-110 |
 |
 |
 |
Secondary Stage
| Model No. |
EM1-90 |
EM-90 |
EM3-110 |
| No Of Spindles |
156/168/180 |
130/140/150 |
| Spindle Gauge in mm. |
215 |
260 |
| Pot Dia in mm. |
90 |
110 |
| Denier Range |
50-300 |
| Installed Power in H.P. |
7.5HP |
| Supply Package in mm |
Take-up Package in mm |
| EM1-90 |
EM2-90 |
EM3-110 |
EM1-90 |
EM2-90 |
EM3-110 |
 |
 |
 |
 |
